NFC temperature sensor / pressure sensor

Nama
Nama
August 2018
edited August 2018
in RFID/NFC

I found this today and thought it worth sharing:
http://www.ti.com/tool/RF430-TMPSNS-EVM

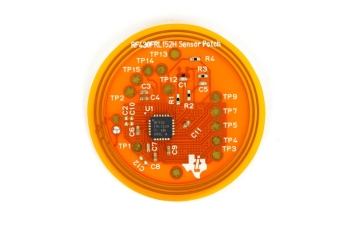

Its a $10 temperature sensor patch which powers and transmits data via NFC. No battery, no bluetooth, just a flexable patch.

The magic behind this is the RF430FRL15xH microcontroller:
http://www.ti.com/product/RF430FRL152H

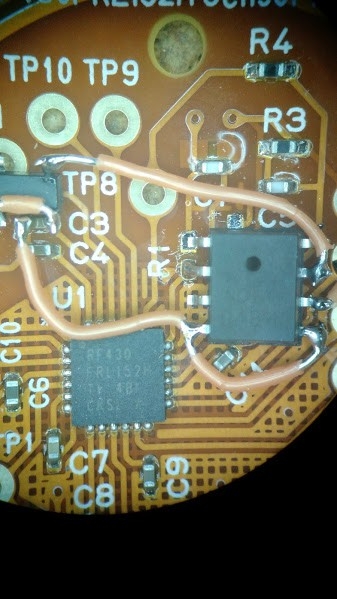

The microcontroller can be piggy backed or used in your own circuit with different sensors. Here the original temperature patch was piggy backed to add a pressure sensor as well:
https://hackaday.io/project/7077/logs

Comments

Displaying 1 comment
  1. Meanderpaul
    Meanderpaul
    First Anniversary Second Anniversary Third Anniversary First Post 10 Posts 100 Posts 500 Posts 1000 Posts You Look Familiar Fourth Anniversary I'm Not Dead Yet! Paging Mr. F
    November 2019
    edited November 2019

    There are already a few temperature chips that can be implanted. What benefit do you see to having a pressure sensor as well?

    Edit: I didn't notice how this was a dead thread till I got a badge...
